CI 自动化部署

GitLab Runner CI 自动化部署

在部署服务器上安装gitlab-runner

yum install gitlab-runner

向GitLab-CI注册gitlab-runner

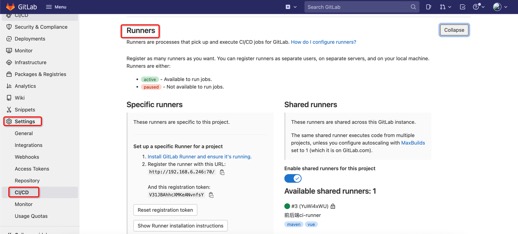

找到你的gitlab上存放的项目，找到settings–>CI/CD–>Runner

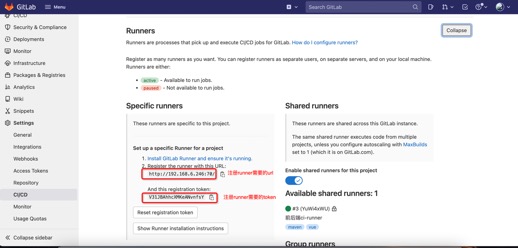

部署服务器上进行runner注册gitlab-runner register

1. url：gitlab所在的测试服务器地址

2. token：项目的token，用于关联runner和项目

3. name：runner的名字，用于区分runner

4. tags：用于匹配任务（jobs）和执行任务的设备（runners），此处不填直接回车时，默认Can run untagged jobs值为true

准备gitlab-ci.yml文件

在gitlabci-service根目录下：

在ci目录下创建.gitlab-ci.yml文件

include: 
	- project: "ci-devops/gitlabci-service" 
	ref: main 
	file: "be/java_build.yml" 
	- project: "ci-devops/gitlabci-service" 
	ref: main 
	file: "be/dingTalk_ci.yml"

	variables: 
	TIMESTAMP: 'date -d $CI_COMMIT_TIMESTAMP +%Y%m%d%H%M'   BUILD_SHELL: "mvn clean package -T 2C -Dmaven.test.skip=true -Dmaven.compile.fork=true" 
	ARTIFACT_REPOSITORY_NAME: "java" 
	TARGET_FILE_PATH: "$CI_PROJECT_NAMESPACE/$CI_PROJECT_NAME/$CI_COMMIT_REF_NAME-$CI_COMMIT_SHORT_SHA-$CI_PIPELINE_ID" 
	TARGET_ARTIFACT_NAME: "$CI_PROJECT_NAME-$CI_COMMIT_REF_NAME"   #IMAGE_TAG: "$HARBOR_URL/$CI_PROJECT_NAME/$CI_JOB_NAME:`$TIMESTAMP`"  stages: 
	- build_image 
	- dingTalk  
auto-deploy-demo: 
	stage: build_image 
	extends: .data-platform-common-template  

dingTalk: 
	rules: 
	- if: '$CI_COMMIT_REF_NAME == "dev/auto-deploy"' 
	stage: dingTalk 
	extends: .dingTalk

在buildfile目录下创建${projectName}.Dockerfile文件，用于docker构建镜像

FROM openjdk:17 
WORKDIR /app COPY demo2/target/*.jar /app/demo2.jar 
EXPOSE 8090 CMD ["java", "-jar", "demo2.jar"]

在deployfile目录下创建deploy-${projectName}.yml文件，用于执行k8s相关命令

apiVersion: apps/v1 
kind: Deployment 
metadata: 
	labels: 
	app: demo2 
	name: demo2 
	namespace: default 
spec: 
	replicas: 1 
	selector: 
		matchLabels: 
			app: demo2 
	template: 
		metadata: 
			labels: 
				app: demo2 
spec: 
	containers: 
	-  image: APP_IMAGE 
		imagePullPolicy: IfNotPresent 
		name: demo2 
		ports: 
		- containerPort: 8090 
		protocol: TCP

在ci目录下创建java_build.yml文件，用于处理在自动化部署中，打包、推包等流程

.data-platform-common-template: 
stage: build_image 
tags:     # 指定runner 
- server 
rules:     # 指定分支 
- if: '$CI_COMMIT_REF_NAME == "dev/auto-deploy"' 
changes: 
- $CI_JOB_NAME/**/* 
script: 
 - | 
- echo "====================进入$CI_BUILD_NAME=======================" 
- echo "========定义变量:$CI_JOB_NAME========="     #打印所有的环境变量，用于调试 
- env 
- echo "====================编译=======================" 
- java -version 
- mvn -version     # 如果是多层目录，需要进入当前项目所在目录 
- cd $CI_JOB_NAME/     #    - mvn clean     #    - mvn compile 
- echo "====================开始打包=======================" 
- $BUILD_SHELL 
- echo "====================打包完毕=======================" 
- cd target/ 
- ls 
- pwd 
- echo "=================================================="     # 退出到根目录 
- cd .. 
- cd .. 
- ls     # 拉取Dockerfile文件，用于docker build 
- wget -O  Dockerfile http://192.168.6.246:70/ci-devops/gitlabci-service/-/raw/main/buildfile/$CI_JOB_NAME.Dockerfile     # 打印Dockerfile 
- ls && cat Dockerfile     # 构建镜像 
- docker build . -t $HARBOR_URL/demo/$CI_JOB_NAME:$($TIMESTAMP)     # 推送镜像至仓库 
- docker push $HARBOR_URL/demo/$CI_JOB_NAME:$($TIMESTAMP) 
- docker rmi  $HARBOR_URL/demo/$CI_JOB_NAME:$($TIMESTAMP) 
- IMAGES=$HARBOR_URL/demo/$CI_JOB_NAME:$($TIMESTAMP) 
- echo $IMAGES     # 拉去deploy.yml，用于执行k8s相关命令 
- wget -O deploy.yml http://192.168.6.246:70/ci-devops/gitlabci-service/-/raw/main/deployfile/deploy_$CI_JOB_NAME.yml 
- ls     # 替换变量 
- sed -i "s@APP_IMAGE@$IMAGES@g" deploy.yml 
- cat deploy.yml     # 暂时关闭 
- kubectl apply -f deploy.yml
